Chapter 8: Verification and Safety — When Sim-to-Real Meets Production Liability
A robot that works in simulation is only the beginning of production approval. A factory needs not merely a successful policy, but a release ladder that explains when the policy fails, who approves deployment, and what evidence supports rollback.
NVIDIA's ecosystem is useful because Omniverse, Isaac, Cosmos, GR00T, and edge runtimes can test many candidate behaviors quickly. Production liability, however, remains with the manufacturer. Sim-to-real becomes factory language only when quality, safety, maintenance, and operators can read the validation system.
Overview
Learning objectives - Reframe sim-to-real validation as a production release gate, not a research benchmark. - Translate VLA, force-aware policy, and tactile policy risks into quality, safety, and operator-approval procedures. - Design evidence packages for shadow mode, supervised operation, restricted production, and fleet rollout.
VLAs and humanoid foundation models make robot instructions more flexible, but flexibility itself can be hazardous in a factory. GR00T, RT-2, Gemini Robotics, and pi0-style systems point toward general robot policies [1]; [10]; [9]; [4]. A production cell must also encode forbidden states and approval procedures.
Safety validation cannot stop at "the robot does not hit a person." A robot can create a defect by gripping the wrong surface, hide a downstream issue through bad rework, or regress only on one SKU after a model update. Those are production-safety issues too.
| Validation stage | Purpose | Required evidence | Condition for next step |
|---|---|---|---|
| Offline simulation | Reproduce known failures | USD asset, physics setting, synthetic scene log | Initial failure taxonomy is closed |
| Shadow mode | Observe the real cell without control | Model predictions compared with camera, PLC, and QA logs | False positives and negatives are bounded |
| Supervised operation | Execute only operator-approved actions | Override log, stop reason, rework outcome | Human intervention rate decreases |
| Restricted production | Use limited SKUs and shifts | Release note, safety case, rollback plan | Quality metrics match or beat the old process |
| Fleet rollout | Scale across cells | Model/version registry, drift monitor | Change approval becomes repeatable |
8.1 Sim-to-Real Is A Release Process
Sim-to-real is more than moving simulated performance into the physical world. In manufacturing, it is a release process. The team must record which asset version reproduced which failure and which policy checkpoint was approved inside which safety envelope.
RT-1 and RT-2 show why large robot datasets and language grounding help generalization [10]; [10]. A factory, however, is not asking only for generalization. It asks whether a behavior is allowed for this SKU, fixture, shift condition, and operator-approval path.
The validation document should be narrower than a model card and stricter than an operations note. It should bind task boundary, allowed actions, forbidden states, expected contact, force limits, stop conditions, manual recovery, and quality reinspection.
8.2 Translate Safety Constitutions Into Factory Rules

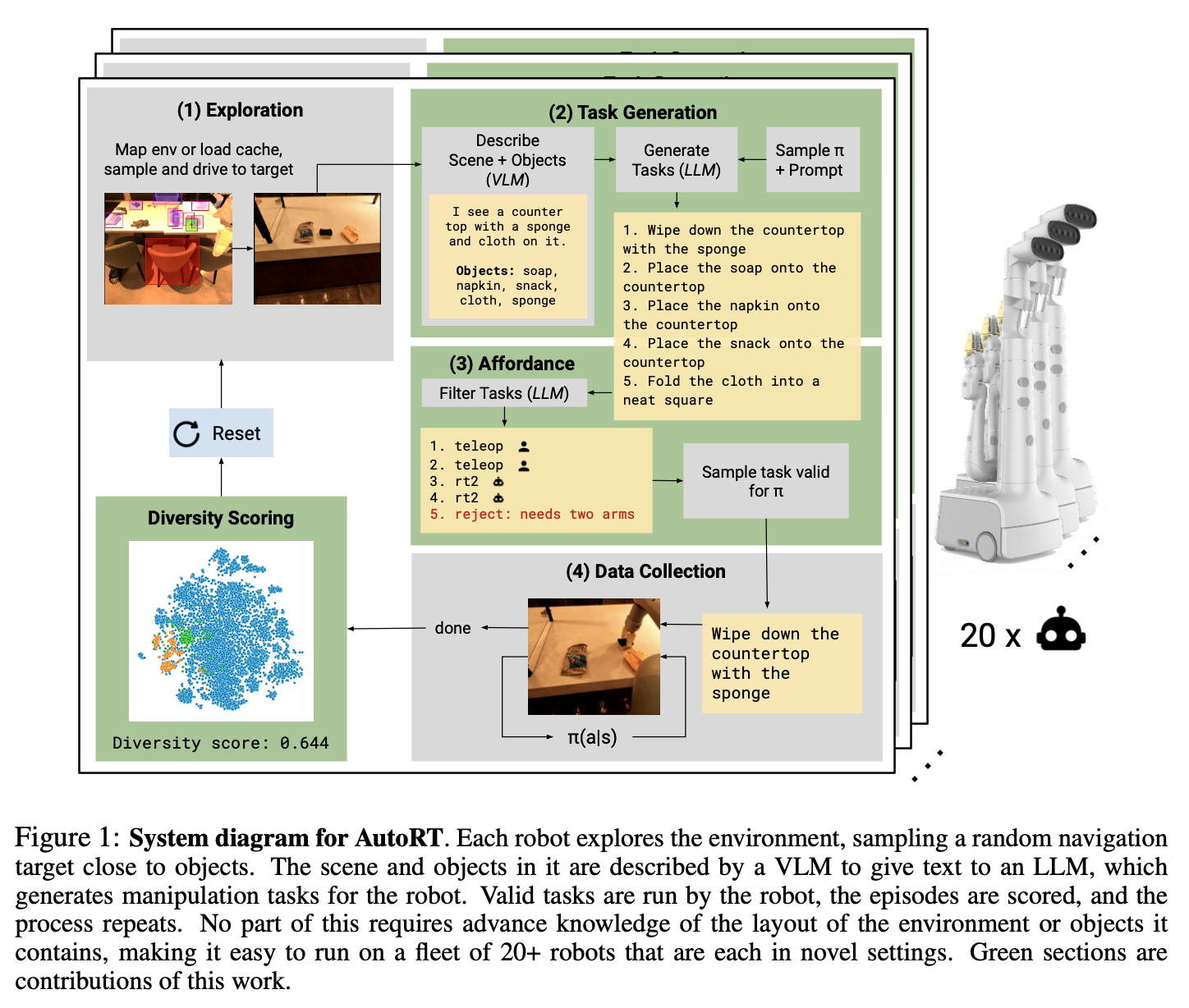

AutoRT-style fleet orchestration and safety constitutions are useful patterns for manufacturing. The core idea is that a robot should pass prohibited-state and approval rules before it executes candidate actions.
Factory safety rules cannot be only natural-language instructions. They must include hard signals such as PLC interlocks, light curtains, torque limits, fixture state, MES route, and QA sampling rules. Even if a VLA understands "realign the part," the system must know whether that action is allowed at the current production route.
Failure explanation is part of safety. The team should know why the robot stopped, which sensor was uncertain, and which evaluation case should be added next. Force- and tactile-aware VLA work opens a path toward better handling of contact failures [5]; [7], but the manufacturer must turn that possibility into auditable logs.
8.3 Evidence Packages Quality Teams Can Read
The audience for production validation is not only robotics researchers. Quality teams care about defect rate, rework, sampling plans, and traceability. Safety teams care about hazards, stop categories, and operator exposure. Maintenance teams care about downtime, spare parts, and calibration. Cell leaders care about takt time and shift handoff.
An evidence package should therefore include five things: model and data lineage; the gap between simulation and real trials; failure frequency and severity by class; operator override plus human handoff records; and rollback criteria with the procedure for restoring the previous policy.
pi0.5-style post-deployment improvement points toward learning from field feedback [11]. In manufacturing, that improvement loop must not bypass quality approval. A better model should not automatically replace a production policy merely because offline metrics improved.
8.4 Manufacturing Cell Checkpoint
| Checkpoint | Question | Passing condition |
|---|---|---|
| Release owner | Who approves policy deployment? | Manufacturing, quality, and safety owners sign a decision record |
| Simulation fidelity | Which failures were compared with reality? | Top failure classes appear in both simulation and real trial logs |
| Operator authority | When can an operator override? | Override button, stop reason, and recovery path are logged |
| Quality lock | Does a model change alter the quality rule? | QA rules and model versions are managed separately |
| Rollback | How does the cell recover from a bad deployment? | Previous policy, fixture setting, and checklist can be restored |
Without this checkpoint, sim-to-real may be sufficient for a research demo but not for production liability. With it, fleet rollout becomes a repeatable approval procedure rather than a risky jump.
8.5 What To Learn Next
The next chapter moves this validation system into a compute architecture. The team must decide what belongs in DGX or cloud training, what belongs in Omniverse/Isaac validation, and what must remain on Jetson or IGX edge hardware near the cell.
The next learning target is not product names in the NVIDIA stack. It is the compute boundary: where latency, safety, data ownership, and update cadence should sit across the data center, simulation workstation, edge computer, PLC, and MES.
References
- NVIDIA (2025). NVIDIA GR00T / Foundation Model for Humanoids (2025). NVIDIA / industry. https://developer.nvidia.com/project-groot
- Johan Bjorck et al. (2025). GR00T N1: An Open Foundation Model for Generalist Humanoid Robots. arXiv preprint. https://arxiv.org/abs/2503.14734
- Figure AI (2025). Figure AI Helix VLA (2025). Figure AI / industry. https://www.figure.ai/news/helix
- Physical Intelligence (2024). pi0: A Vision-Language-Action Flow Model for General Robot Control. arXiv preprint. https://arxiv.org/abs/2410.24164
- Jiawen Yu et al. (2025). ForceVLA: Enhancing VLA Models with a Force-aware MoE for Contact-rich Manipulation. NeurIPS 2025. https://arxiv.org/abs/2505.22159
- Anthony Brohan et al. (2023). RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control. CoRL 2023. https://arxiv.org/abs/2307.15818
- Jialei Huang et al. (2025). Tactile-VLA: Unlocking Vision-Language-Action Model's Physical Knowledge for Tactile Generalization. arXiv preprint arXiv:2507.09160. https://arxiv.org/abs/2507.09160
- Erik Helmut et al. (2025). Tactile-Conditioned Diffusion Policy for Force-Aware Robotic Manipulation (FARM). ICRA 2026. https://arxiv.org/abs/2510.13324
- Google DeepMind (2025). Gemini Robotics: Bringing AI into the Physical World. arXiv preprint. https://arxiv.org/abs/2503.20020
- Anthony Brohan et al. (2023). RT-1: Robotics Transformer for Real-World Control at Scale. Robotics: Science and Systems (RSS) 2023. https://arxiv.org/abs/2212.06817
- Physical Intelligence (2025). pi0.5: A VLA model and training recipe for post-deployment improvement via RLEF. arXiv preprint. https://arxiv.org/abs/2504.16932
- Octo Model Team (2024). Octo: An Open-Source Generalist Robot Policy. arXiv preprint. https://arxiv.org/abs/2405.12213
- Yaron Lipman et al. (2023). Flow Matching for Generative Modeling. ICLR 2023. https://arxiv.org/abs/2210.02747
- L'Oreal (2025). L'Oreal Opens SMART Fulfillment Center Suzhou. L'Oreal Operations Press.
